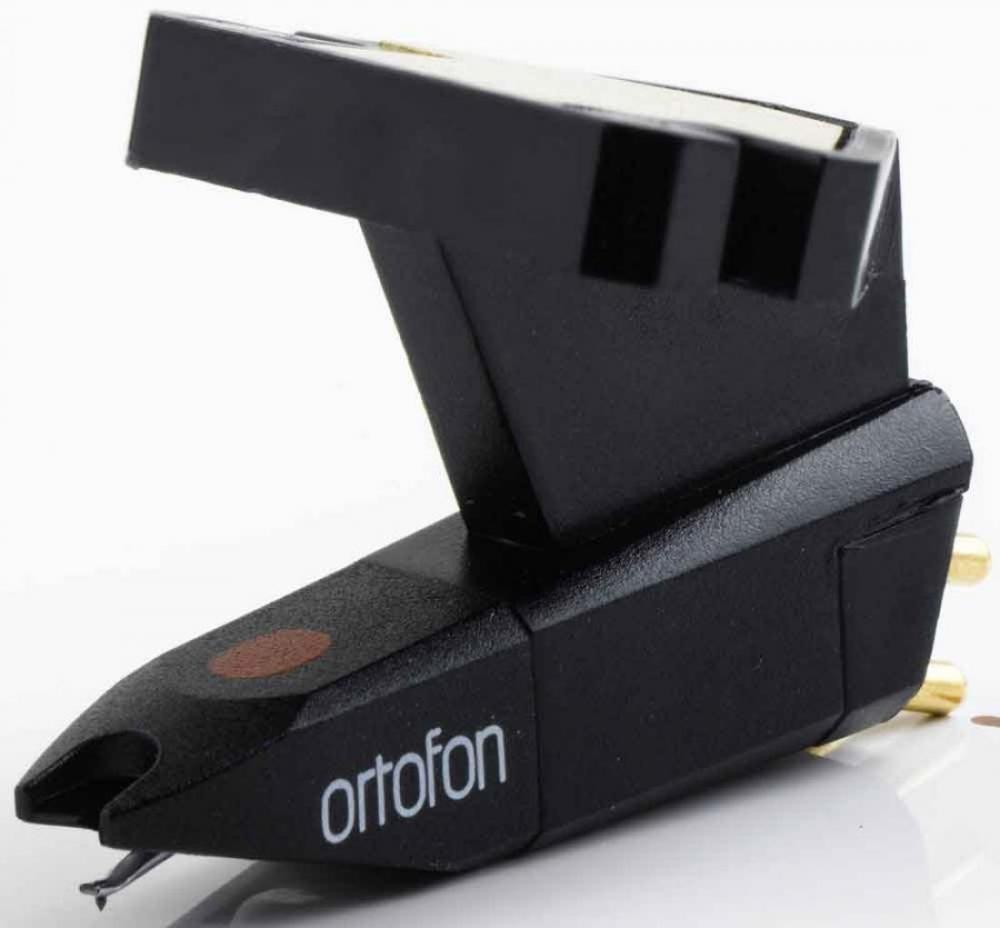

Ortofon OM 5E äänirasia

Ortofon OM 5E MM äänirasia

Tekniset tiedot:

Output voltage at 1000 Hz, 5cm/sec.: 4 mV

Channel balance at 1 kHz: 2 dB

Channel separation at 1 kHz: 22 dB

Channel separation at 15 kHz: 15 dB

Frequency range at - 3dB: 20-25.000 Hz

Frequency response: 20-20.000 Hz ± 2 dB

Tracking ability at 315Hz at recommended tracking force *): 65 µm

Compliance, dynamic, lateral: 20 µm/mN

Stylus type: Elliptical

Stylus tip radius: r/R 8/18 µm

Tracking force range: 1,5-2,0 g (15-20 mN)

Tracking force, recommended: 1,75 g (17,5 mN)

Tracking angle: 20°

Internal impedance, DC resistance : 750 Ohm

Internal inductance: 450 mH

Recommended load resistance: 47 kOhm

Recommended load capacitance: 200-600 pF

Cartridge colour, body/stylus: Black/Black

Cartridge weight: 5 g
